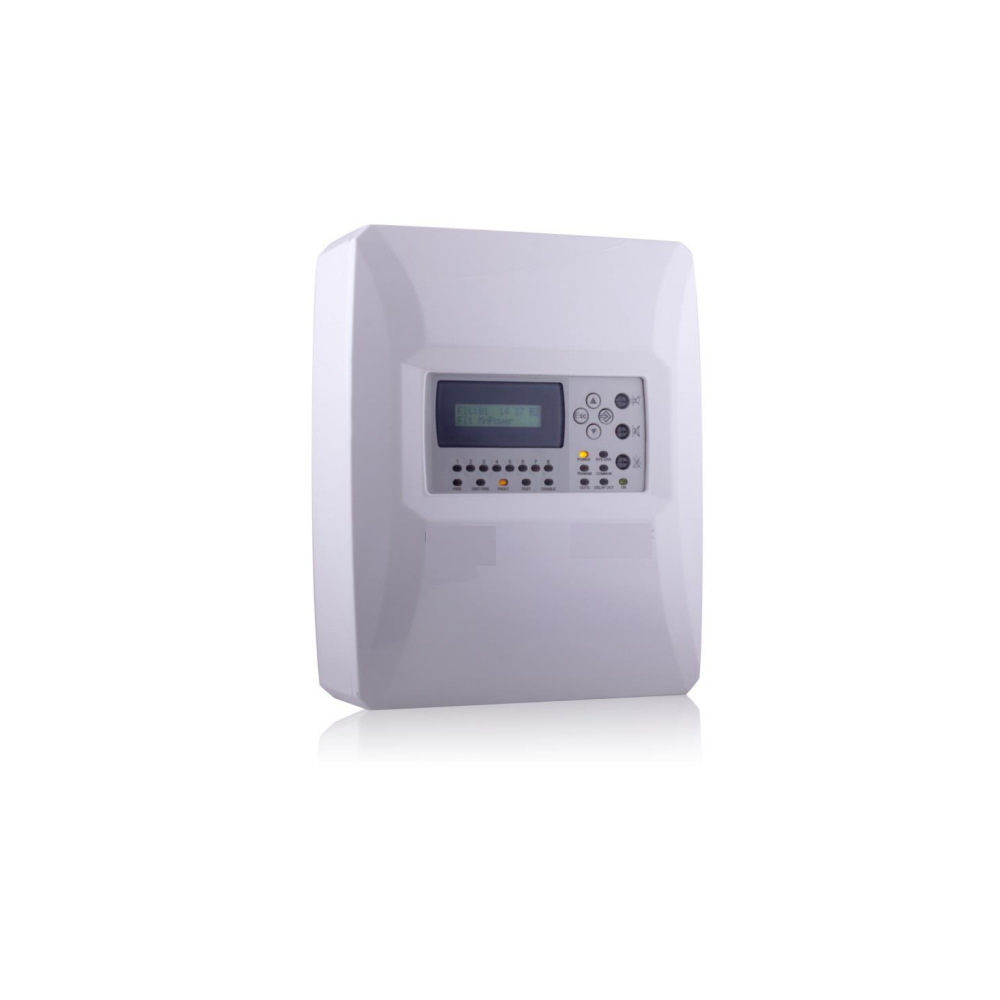

Conventional fire alarm panel 4 zone with LCD display
Conventional fire alarm panel 4zone
Technical Features
• Maximum number of fire detectors in a line/zone 32
• Control of the lines and controllable outputs for fault conditions (short circuit and interruption) and automatic reset ;
• Built-in sounder in case of fire – monotonal , continuous with the possibility of exclusion;
• Ability to Disable each of the fire alarm lines ;
• N°1 Independent relay output in case of fire alarm 3A/125V AC, 3A/30V DC
• N°2 Controllable output in case of fire alarm:( 19-28)VDC/ 0,5A
• N°1 Independent relay output in case of failure: 3A/125V AC, 3A/30V DC
• Battery 5Ah Power supply 220Vac 65Watt
• Weight 1,25 Kgm
