OneMini

OneMini 1 loop panel with 240 devices per loop Networkable Lan Option Repeater option

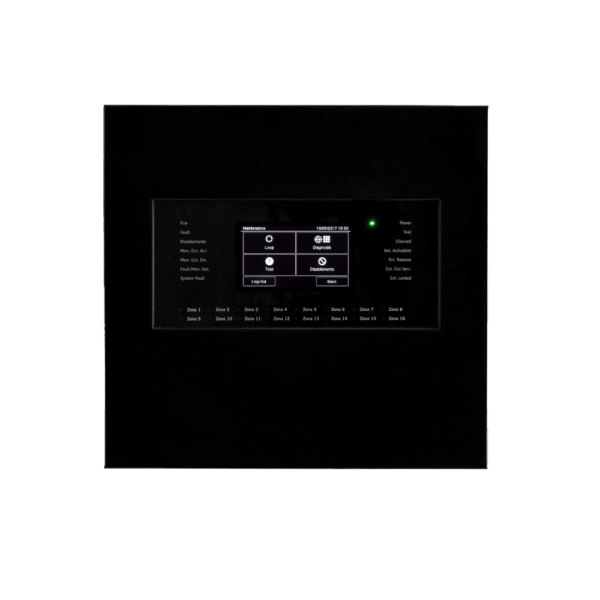

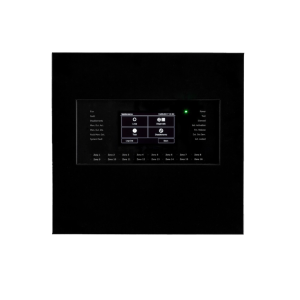

OneMini is the fire alarm control panel of the future completely made in Italy. First alarm control panel with touch-screen technology certified EN 54-2 and 4. The GUI interface is user friendly, you can program the panel without the use of any manual. There are three access levels which facilitate the ease of use of each type of operation (installation, maintenance and End User visualization). OneMini is a single loop panel, you can connect up 240 devices. If you want to connect more loop devices you can create a ring of OneMini through the OneRing card, so your building will be even more secure.

OneMini allows to use addressable wireless devices and wired devices in the same system. The panel records each alarm and fault, so they are visible into “historical events”, you can filter and search each event by date, events type, zones and loops. All the historical events and the diagnostics of all the devices can be exported easily with a USB pendrive from the OneMini Panel.

OneMini has a unique stylish design, the mechanical chassis is also available in different colors. The high-end technological background effect with different LED colors can be added or removed. Also, on request, Teledata allows you to customize the panel inserting the digital logo of your company on the touch screen. OneMini is an international product, it manages up to 111 languages and their alphabets.

To increase even more the ease of use for the programming of the OneMini panel there is OneCloud, the new area of commissioning! Thanks to OneCloud you can configure the panel with any type of device (PC, smartphone, tablet…) comfortably, far from central panel, and import the configuration on your OneMini easily with a USB pendrive





HARDWARE Features
• Addressable 32-bit microprocessor panel with graphical touchscreen display (480 x 272 TFT 4.3 “)
• 1 addressable loop with digital protocol configurable as open or closed
• 240 addressable devices on loop
• Up to 14 remote control panels can be connected to the RS485 BUS max 800m distance (cod. Art. ONEKBD)
• Short circuit protection
• 14 Front LEDs
• 2 monitored output for siren or optical-acoustic signaling (24Vdc 1A)
• General clean contact output 1A 30Vdc 120 Vac
• 1 general fault output
• 1 RS 485 for peripherals
• 1 RS 232/micro USB for programming and remote management.
• Ethernet card 10-100 Mbit/s (optional card ONECONNECT)
• 16 LED zones (optional card ONE16 )
• Ring network adapter between panels (optional cod. Art. ONERING)
• Battery capacity: 2 x 7.2 Ah
• Efficiency test batteries and battery disconnection in case of deep discharge
• Operating temperature from 0° to 50° degrees
• Auxiliary power output 24 Vdc 500mA with short protection
• Dimensions: 330 x 310 x 80 mm
• Power supply: 230Vac

SOFTWARE Features
• Up to 240 addressable devices for the loop
• Hybrid system wired/radio
• Division up to 192 areas
• 96 logic functions
• Store more than 1000 events
• Auto programming analog devices on loop
• Mapping analog devices on loop
• Ring connecting with other central using a fault tolerant network
• Multilingual management
• Fully customizable with personal logo, Color
• Touch screen and side multi-color LED
• Management of detectors and different types of analog modules:
– Thermal and optical detectors mixed
– Input Modules
– Output Modules
– Addressed buttons
– Analog Addressable sirens multiprotocol
• TCPIP Protocol MODBUS/MODBUS RTU over TCP IP (optional cod. Art. ONEMODBUS)
• Certified Product Standards EN54-2 and EN54-4
